DOTTAC Stainless Steel 316 grade integrated tactile tile with black carborundum insert studs on top 300×600 plate.
A fully integrated stainless steel tactile Carborundum insert plates ground surface indicator, manufactured from austenitic stainless steel to provide long-lasting stable performance designed to warn the visually impaired of an impending hazard or to provide directional guidance. As part of the Disability Discrimination Act. (DDA). It is mandatory to provide Tactile Ground Surface Indicators (TGSI’s) to stairs, ramps, and many other changing conditions.
Tested As /NZs 1428:4. 2002 Design for access and mobility
AS/NZS 4586:1999 slip resistance classification for new
pedestrian surface materials.
5 years warranty
- R13 anti-slip rated in accordance with the Australian Standards AS 4586, the highest in the industry.
- Manufactured From 316 Stainless steel to ensure long-lasting main free performance.
- Resistant to heavy traffic abuse and maintenance machinery.
- Dottac Tactile plates offer specifiers the option of a fully integrated stainless steel tactile system.
- Highly polished, bright, and attractive surface finish.
- Can be removed and relocated.

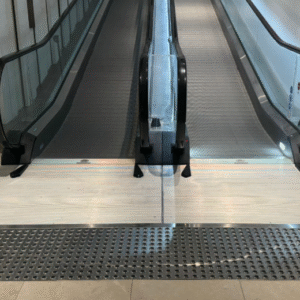

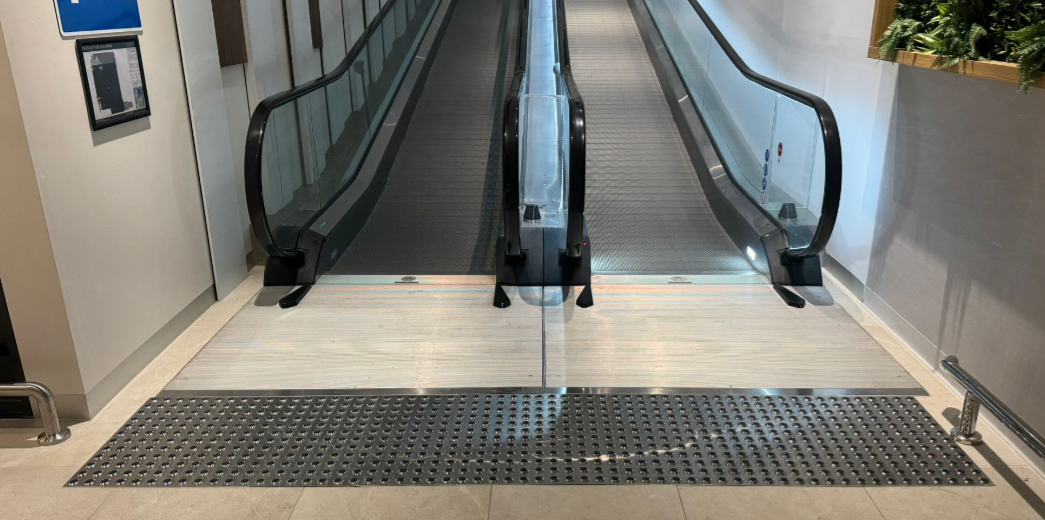

- Allows easy installation over otherwise difficult substrates. such as timber decking, carpet, and escalator maintenance plates.
Product: Stainless Steel Tactile Plate with black carborundum insert
Tactile Type: Warning Tactile
Design: As Australian Standard
Material: Stainless Steel
Finish: Machined/ Cast
Dimensions: 600 x 300
TESTED: AS 4586 & AS 4663
Technical Data Sheet
Dimension and Fixing guide
